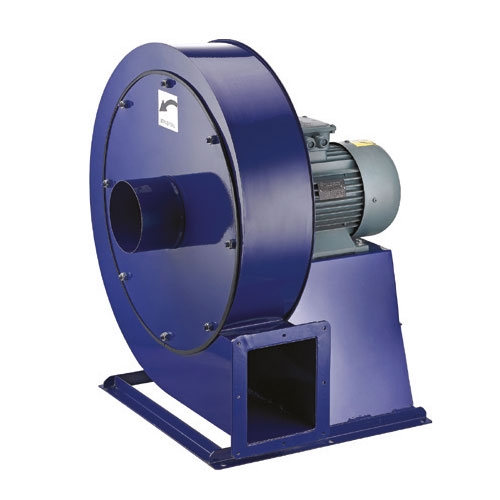

Medium Pressure Snail Fans
It is used for the ventilation of dusty and oily environments. It is also preferred to prevent the transfer of materials such as marble powder, plastic powder, wood shavings, nuts, tea, etc.
Ürünü Paylaş
| Medium Pressure Snail Fans | |||||||||||
| Model | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Capacitor | Speed d/dak | Air/ (m3/h) | Sound (dbA) | Yal. Sın. İz. Kl. | K. Sın. Ip | Weight Kg |
| ORB 1M | 230 | 50 | 0,37 | 2,5 | 15 | 2800 | 950 | 56 | F | 55 | 30 |
| ORB 2M | 230 | 50 | 0,75 | 5 | 30 | 2760 | 1000 | 59 | F | 55 | 35 |
| ORB 3M | 230 | 50 | 1,1 | 7 | 35 | 2770 | 1300 | 60 | F | 55 | 37 |
| ORB 4M | 230 | 50 | 1,5 | 9,8 | 40 | 2820 | 1600 | 62 | F | 55 | 53 |
| ORB 5M | 230 | 50 | 2,2 | 13,5 | 50 | 2800 | 1900 | 64 | F | 55 | 70 |
| ORB 6M | 230 | 50 | 3 | 17,7 | 60 | 2850 | 2200 | 65 | F | 55 | 86 |
| ORB 1T | 380 | 50 | 0,37 | 1,05 | _ | 2800 | 950 | 56 | F | 55 | 30 |
| ORB 2T | 380 | 50 | 0,75 | 1,75 | _ | 2760 | 1000 | 59 | F | 55 | 35 |
| ORB 3T | 380 | 50 | 1,1 | 2,3 | _ | 2770 | 1300 | 60 | F | 55 | 37 |
| ORB 4T | 380 | 50 | 1,5 | 3,3 | _ | 2820 | 1600 | 62 | F | 55 | 53 |
| ORB 5T | 380 | 50 | 2,2 | 4,5 | _ | 2800 | 1900 | 64 | F | 55 | 70 |
| ORB 6T | 380 | 50 | 3 | 5,8 | _ | 2850 | 2200 | 65 | F | 55 | 86 |
| ORB 7T | 380 | 50 | 4 | 7,9 | _ | 288 | 2500 | 69 | F | 55 | 96 |
| ORB 8T | 380 | 50 | 5,5 | 10,3 | _ | 2900 | 3000 | 72 | F | 55 | 108 |
| ORB 9T | 380 | 50 | 7,5 | 13,6 | _ | 2910 | 4000 | 74 | F | 55 | 125 |
| Sound level was measured at a distance of 4 -10 m in room condition. / In our products, the engine of which is supplied externally, is reflected in the prices on the day of the hike made to the engine. | |||||||||||
