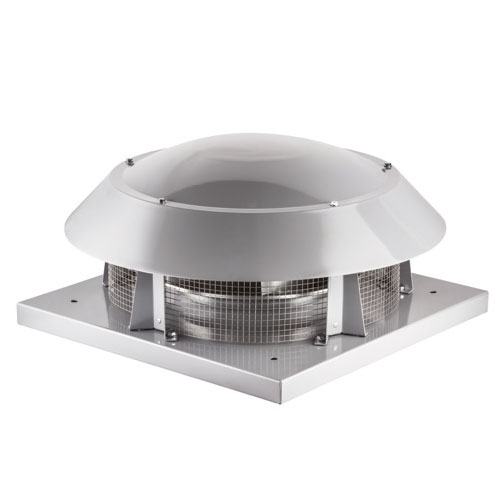

Horizontal Throw Radial Roof Fans
Horizontal throw radial roof fans used to increase the air quality of indoor spaces are used in chimney or hood exits. With its external motor structure, the fan operates smoothly where high performance is required with its high level of heat resistance.
Ürünü Paylaş
| Horizontal Throw Radial Roof Fans | |||||||||||
| Model | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Capacitor | Speed d/dak | Air/ (m3/h) | Sound (dbA) | Yal. Sın. İz. Kl. | K. Sın. Ip | Weight Kg |
| BRF 160 | 230 | 50/60 | 60 | 0,3 | 2 | 2600/3000 | 346/400 | 44-36 | B | 44 | 3,5 |
| BRF 180 | 230 | 50/60 | 70/90 | 0,35/0,43 | 2,5 | 2500/2750 | 460/500 | 49-41 | B | 44 | 3,7 |
| BRF 225 | 230 | 50/60 | 80/100 | 0,40/0,50 | 3 | 2750/3100 | 902/1020 | 50-42 | B | 44 | 7 |
| BRF 250 | 230 | 50/60 | 125/175 | 0,61/0,91 | 6 | 2800/3180 | 1212/1375 | 52-44 | B | 44 | 8 |
| BRF 315 | 230 | 50/60 | 130/150 | 0,8 | 6 | 1450/1740 | 2000/2400 | 47-39 | F | 44 | 12,8 |
| BRF 355 | 230 | 50/60 | 200/245 | 1,05 | 6 | 1400/1680 | 2900/3500 | 46-38 | F | 44 | 18 |
| BRF 400 | 230 | 50/60 | 310/460 | 1,56/2,27 | 1 | 1380/1560 | 4100/4600 | 51-43 | F | 44 | 22 |
| BRF 450 | 230 | 50/60 | 430/655 | 2,2/3,2 | 10 | 1370/1525 | 5400/6000 | 52-44 | F | 44 | 28 |
| BRF 500 | 380∆/Y | 50 | 840/580 | 1,95/1,12 | _ | 1360/1100 | 7600/6150 | 54-46 | F | 44 | 45,5 |
| BRF 560 | 380∆/Y | 50 | 1440/840 | 2,8/1,6 | _ | 1300/950 | 9800/7150 | 66-58 | F | 44 | 48 |
| The sound level was measured at a distance of 4-10 m under room condition. | |||||||||||
