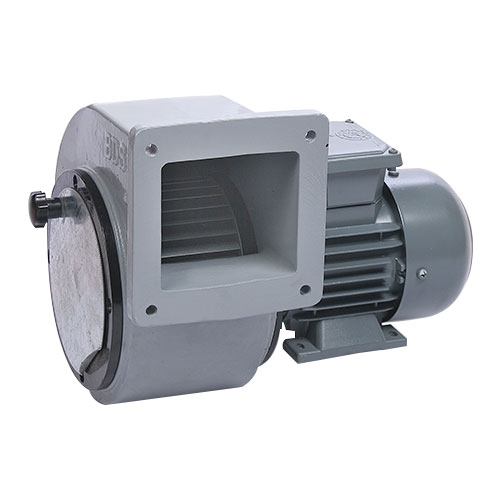

Forward Curved Aluminum Body Radial Fans
It has low noise level, durable body structure, high pressure and operation in hot environments characteristics. The body structure has an aluminum cast radial fan and forward curved blades.
Ürünü Paylaş
| Forward Curved Aluminum Body Radial Fans | |||||||||||
| Model | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Capacitor | Speed d/dak | Air/ (m3/h) | Sound (dbA) | Yal. Sın. İz. Kl. | K. Sın. Ip | Weight Kg |
| BDS 1M (140-70) | 230 | 50 | 0,25 | 1,6 | 10 | 2870 | 800 | 50 | F | 55 | 9 |
| BDS 2M (160-90) | 230 | 50 | 0,37 | 2,5 | 15 | 2885 | 1700 | 55 | F | 55 | 11 |
| BDS 3M (180-90) | 230 | 50 | 0,55 | 3,5 | 20 | 2865 | 2100 | 60 | F | 55 | 13 |
| BDS 4M (225-90) | 230 | 50 | 0,75 | 5 | 30 | 2770 | 2600 | 65 | F | 55 | 18 |
| BDS 4M (225-102) | 230 | 50 | 1,1 | 7 | 35 | 2770 | 3200 | 68 | F | 55 | 19 |
| BDS 5M (250-112) | 230 | 50 | 1,5 | 9,8 | 40 | 2820 | 3700 | 70 | F | 55 | 25 |
| BDS 6M (268-112) | 230 | 50 | 2,2 | 13,5 | 50 | 2800 | 4650 | 71 | F | 55 | 31 |
| BDS 1T (140-70) | 380 | 50 | 0,25 | 0,67 | _ | 2840 | 800 | 50 | F | 55 | 9 |
| BDS 2T (160-90) | 380 | 50 | 0,37 | 1,05 | _ | 2800 | 1700 | 55 | F | 55 | 11 |
| BDS 3T (180-90) | 380 | 50 | 0,55 | 1,27 | _ | 2780 | 2100 | 60 | F | 55 | 13 |
| BDS 4T (225-90) | 380 | 50 | 0,75 | 1,75 | _ | 2760 | 2600 | 65 | F | 55 | 18 |
| BDS 4T (225-102) | 380 | 50 | 1,1 | 2,3 | _ | 2770 | 3200 | 68 | F | 55 | 19 |
| BDS 5T (250-112) | 380 | 50 | 1,5 | 3,3 | _ | 2820 | 3700 | 70 | F | 55 | 25 |
| BDS 6T (268-112) | 380 | 50 | 2,2 | 4,5 | _ | 2800 | 4650 | 71 | F | 55 | 31 |
| BDS 7T (300-112) | 380 | 50 | 4 | 7,9 | _ | 2880 | 6200 | 72 | F | 55 | 43 |
| BDS 8T (315-112) | 380 | 50 | 5,5 | 10,3 | _ | 2900 | 8400 | 73 | F | 55 | 48 |
| Sound level was measured at a distance of 3 m in room condition. / In our products, the engine of which is supplied externally, is reflected in the prices on the day of the hike made to the engine. | |||||||||||
