Backward Curved Rectangular Duct Fans

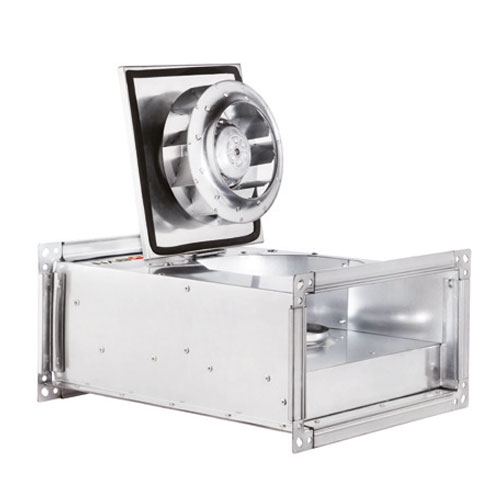

The Backward Curved Rectangular Duct Fan is designed to meet medium and high-volume ventilation needs in duct systems where the rectangular duct fan application area is limited. It is made of galvanized body and radial fan. It is easy for the user to open the cover on it for maintenance. This product can be easily used in all environments. It operates silently thanks to its aerodynamic structure.
Ürünü Paylaş
| Backward Curved Rectangular Duct Fans | |||||||||||
| Model | Voltage (V) | Frequency (Hz) | Input Power (W) | Current (A) | Capacitor | Speed d/dak | Air / (m3/h) | Sound (dbA) | Yal. Sın. İz. Kl. | K. Sın. Ip | Weight Kg |
| BDKF 30-15 | 230 | 50/60 | 75/95 | 0,37/0,47 | 2,5 | 2450 | 450 | 43 | B | 44 | 7 |
| BDKF 40-20A | 230 | 50/60 | 100/135 | 0,49/0,68 | 4 | 2650/2870 | 950/1030 | 48 | B | 44 | 10,5 |
| BDKF 40-20B | 230 | 50/60 | 130/180 | 0,64/0,9 | 5 | 2650 | 1150 | 54 | B | 44 | 11 |
| BDKF 50-25 | 230 | 50/60 | 180/240 | 0,82/1,17 | 6 | 2600/2750 | 1610/1700 | 58 | B | 44 | 15 |
| BDKF 60-30 | 230 | 50/60 | 160 | 0,9 | 6 | 1440/1730 | 1850/2220 | 50 | F | 44 | 29 |
| BDKF 60-35A | 230 | 50/60 | 140/160 | 0,86/0,82 | 6 | 1440/1752 | 2500/3000 | 53 | F | 44 | 31 |
| BDKF 60-35B | 230 | 50/60 | 200/270 | 1/1,4 | 8 | 1400/1680 | 3300/3900 | 58 | F | 44 | 32 |
| BDKF 70-40A | 230 | 50/60 | 310/440 | 1,55/2,2 | 10 | 1350/1550 | 4000/4600 | 56 | F | 44 | 44 |
| BDKF 70-40B | 230 | 50/60 | 500/775 | 2,5/3,7 | 10 | 1350/1450 | 5400/5800 | 58 | F | 44 | 46 |
| BDKF 80-50M | 230 | 50/60 | 800/1160 | 3,83/5,11 | 16 | 1250/1150 | 7000/6440 | 64 | F | 44 | 72 |
| BDKF 100-50M | 230 | 50 | 1550 | 7,3 | 25 | 1250 | 9600 | 66 | F | 44 | 84 |
| BDKF 80-50 | 380∆/Y | 50 | 960/530 | 2/1,1 | _ | 1335/1050 | 7550/5950 | 64 | F | 44 | 66 |
| BDKF 100-50 | 380∆/Y | 50 | 1400/900 | 2,7/1,7 | _ | 1250/950 | 9600/7300 | 66 | F | 44 | 84 |
| The sound level was measured at a distance of 3 m under room condition. | |||||||||||
