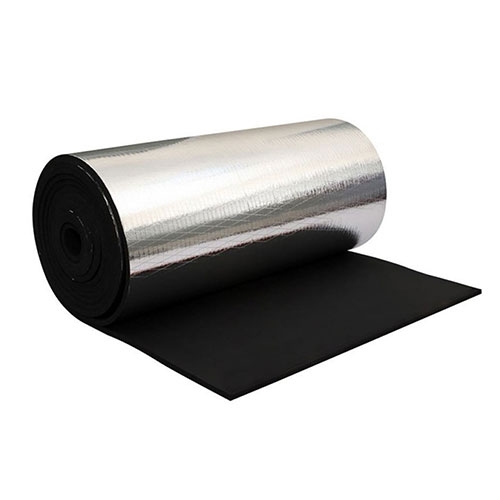

Aluminum Foil Coated Insulation Plate

It is produced as flat plate in different thicknesses and widths. It is the most preferred insulation material in mechanical installations with its low thermal conductivity, high water vapor diffusion resistance and B-S3-D0 fire performance class approved by testing.  In addition to the standard material, there are also product options with Aluminum Foil and PVC + Aluminum Foil coating in order to increase the resistance to UV rays and mechanical impacts. It is also produced with self-adhesive for ease of application and saving time.

Ürünü Paylaş

Aluminum Foil Coated Insulation Plate
Roll Width Thickness m2 / Roll
1 m 6 mm 30
1 m 9 mm 20
1 m 10 mm 20
1 m 13 mm 14
1 m 19 mm 10
1 m 25 mm 8
1 m 32 mm 6
1 m 40 mm 4
1 m 50 mm 4



Roll Width    Thickness    m2 / Roll
1,2 m 6 mm 36
1,2 m 9 mm 24
1,2 m 10 mm 24
1,2 m 13 mm 16,8
1,2 m 19 mm 12
1,2 m 25 mm 9,6
1,2 m 32 mm 7,2
1,2 m 40 mm 4,8
1,2 m 50 mm 4,8
